微晶超小型晶體CM9V-T1A0.332.768kHz9.0pF±20ppmTBQC可穿戴設備專用晶振
來源：http://www.worldtalentltd.com 作者：億金電子 2023年06月08

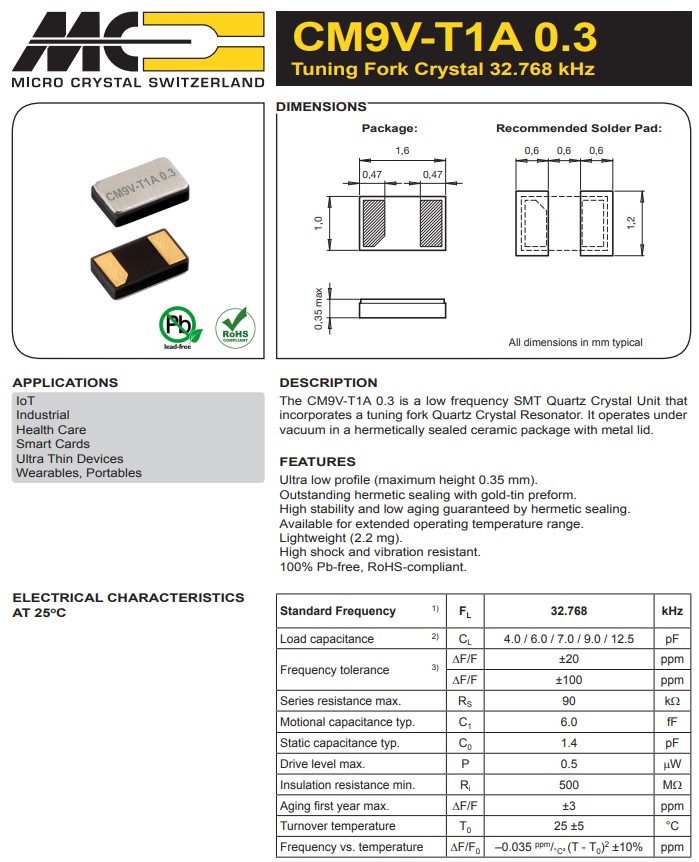

瑞士Microcrystal微晶超低功率、低電壓解決方案提供商推出小型化的下一步：CM9V-T1A 0.3：32.768KHz石英晶體，小體積尺寸僅為1.6x1.0mm兩腳晶振，超薄型(最大高度0.35毫米)，重量輕(2.2毫克)，無源晶振，石英晶體諧振器，石英晶體，密封保證了高穩定性和低老化，適用于擴展的工作溫度范圍，這種新的微小幾何形狀增強了彎曲半徑至關重要的應用中的電路，32.768K貼片晶振系列已在全球數千種應用中取得了良好的成績。 高抗沖擊和振動，100%無鉛，符合RoHS標準，非常適合應用于：可穿戴設備、物聯網、工業、汽車、醫療保健和消費電子，智能卡，小型便捷式設備，手提式打字機，物聯網，產業的，衛生保健。微晶超小型晶體CM9V-T1A0.332.768kHz9.0pF±20ppmTBQC可穿戴設備專用晶振
微晶超小型晶體CM9V-T1A0.332.768kHz9.0pF±20ppmTBQC可穿戴設備專用晶振，Micro Crystal AG公司于1978年在瑞士格倫興成立，是一家生產手表音叉晶體的公司。如今，Micro Crystal AG是微型石英晶體(30kHz至250MHz)、時鐘晶體諧振器，實時時鐘(RTC)模塊、振蕩器和OCXOs的領先制造商，為全球領先的物聯網、可穿戴、汽車、工業和醫療應用制造商提供服務。
| 微晶晶振 | 制造商零件編號 | 描述 | 頻率 |
| Micro Crystal | CM7V-T1A-32.768kHz-7pF-100PPM-TA-QC | 32.768 kHz 7.0 pF +/-100 PPM -40/+85C | 32.768 kHz |
| Micro Crystal | CM8V-T1A-32.768kHz-9pF-20PPM-TA-QC | 32.768 kHz 9.0 pF +/-20 PPM -40/+85C | 32.768 kHz |
| Micro Crystal | CM7V-T1A-32.768kHz-7pF-20PPM-TA-QC | 32.768 kHz 7.0 pF +/-20 PPM -40/+85C | 32.768 kHz |
| Micro Crystal | CM8V-T1A-32.768k-12.5pF-20PPM-TB-QA | 32.768 kHz 12.5 pF +/-20 PPM AEC-Q200 | 32.768 kHz |
| Micro Crystal | CM8V-T1A-32.768k-9pF-20PPM-TB-QA | 32.768 kHz 9.0 pF +/-20 PPM -40/+125C | 32.768 kHz |
| Micro Crystal | CM8V-T1A-32.768kHz-12.5pF-20PPM-TA-QC | 32.768 kHz 12.5 pF +/-20 PPM -40/+85C | 32.768 kHz |
| Micro Crystal | CM7V-T1A-32.768kHz-9pF-20PPM-TA-QC | 32.768 kHz 9.0 pF +/-20 PPM -40/+85C | 32.768 kHz |
| Micro Crystal | CM8V-T1A-32.768kHz-7pF-20PPM-TA-QC | 32.768 kHz 7.0 pF +/-20 PPM -40/+85C | 32.768 kHz |
| Micro Crystal | CM7V-T1A-32.768k-12.5pF-20PPM-TA-QA | 32.768 kHz 12.5 pF +/-20 PPM AEC-Q200 | 32.768 kHz |
| Micro Crystal | CM7V-T1A-32.768k-7pF-20PPM-TA-QA | 32.768 kHz 7.0 pF +/-20 PPM AEC-Q200 | 32.768 kHz |
| Micro Crystal | CM7V-T1A-32.768k-7pF-100PPM-TB-QA | 32.768 kHz 7.0 pF +/-100 PPM AEC-Q200 | 32.768 kHz |
| Micro Crystal | CM7V-T1A-32.768k-12.5pF-20PPM-TB-QA | 32.768 kHz 12.5 pF +/-20 PPM AEC-Q200 | 32.768 kHz |
| Micro Crystal | CM7V-T1A-32.768k-9pF-20PPM-TB-QA | 32.768 kHz 9.0 pF +/-20 PPM AEC-Q200 | 32.768 kHz |
| Micro Crystal | CM7V-T1A-32.768kHz-9pF-20PPM-TC-QC | 32.768 kHz 9.0 pF +/-20 PPM -55/+125C | 32.768 kHz |
| Micro Crystal | CM7V-T1A-32.768kHz-6pF-20PPM-TA-QC | 32.768 kHz 6.0 pF +/-20 PPM -40/+85C | 32.768 kHz |
| Micro Crystal | CM7V-T1A-32.768k-7pF-20PPM-TC-QA | 32.768 kHz 7.0 pF +/-20 PPM AEC-Q200 | 32.768 kHz |
| Micro Crystal | CM7V-T1A-32.768k-9pF-20PPM-TC-QA | 32.768 kHz 9.0 pF +/-20 PPM AEC-Q200 | 32.768 kHz |
| Micro Crystal | CM8V-T1A-32.768kHz-6pF-20PPM-TA-QC | 32.768 kHz 6.0 pF +/-20 PPM -40/+85C | 32.768 kHz |
| Micro Crystal | CM8V-T1A-32.768kHz-12.5pF-20PPM-TB-QC | 32.768 kHz 12.5 pF +/-20 PPM -40/+125C | 32.768 kHz |
| Micro Crystal | CM8V-T1A-32.768kHz-7pF-20PPM-TB-QC | 32.768 kHz 7.0 pF +/-20 PPM -40/+125C | 32.768 kHz |
| Micro Crystal | CM9V-T1A-32.768kHz-7pF-100PPM-TA-QC | 32.768 kHz 7.0 pF +/-100 PPM -40/+85C | 32.768k |
| Micro Crystal | CM9V-T1A-32.768kHz-7pF-20PPM-TA-QC | 32.768 kHz 7.0 pF +/-20 PPM -40/+85C | 32.768 kHz |
| Micro Crystal | CM7V-T1A-0.3-32.768kHz-7pF-20PPM-TA-QC | 32.768 kHz 7.0 pF +/-20 PPM 0.3mm | 32.768 kHz |
| Micro Crystal | CM7V-T1A-0.3-32.768kHz-9pF-20PPM-TA-QC | 32.768 kHz 9.0 pF +/-20 PPM 0.3mm | 32.768 kHz |
| Micro Crystal | CM7V-T1A-32.768kHz-9pF-10PPM-TA-QC | 32.768 kHz 9.0 pF +/-10 PPM -40/+85C | 32.768 kHz |
| Micro Crystal | CM9V-T1A-32.768kHz-12.5pF-20PPM-TA-QC | 32.768 kHz 12.5 pF +/-20 PPM -40/+85C | 32.768 kHz |
| Micro Crystal | CM7V-T1A-32.768kHz-7pF-20PPM-TB-QC | 32.768 kHz 7.0 pF +/-20 PPM -40/+125C | 32.768 kHz |
| Micro Crystal | CM9V-T1A-32.768kHz-9pF-20PPM-TA-QC | 32.768 kHz 9.0 pF +/-20 PPM -40/+85C | 32.768 kHz |
| Micro Crystal | CM7V-T1A-32.768kHz-7pF-10PPM-TA-QC | 32.768 kHz 7.0 pF +/-10 PPM -40/+85C | 32.768 kHz |
| Micro Crystal | CM7V-T1A-32.768k-12.5pF-20PPM-TC-QA | 32.768 kHz 12.5 pF +/-20 PPM AEC-Q200 | 32.768 kHz |
| Micro Crystal | CM8V-T1A-32.768k-12.5pF-20PPM-TA-QA | 32.768 kHz 12.5 pF +/-20 PPM AEC-Q200 | 32.768 kHz |
| Micro Crystal | CM8V-T1A-32.768kHz-9pF-20PPM-TB-QC | 32.768 kHz 9.0 pF +/-20 PPM -40/+125C | 32.768 kHz |
| 石英晶振 | CM7V-T1A-32.768k-9pF-20PPM-TA-QA | 32.768 kHz 9.0 pF +/-20 PPM AEC-Q200 | 32.768 kHz |
| Micro Crystal | CM7V-T1A-32.768kHz-9pF-20PPM-TB-QC | 32.768 kHz 9.0 pF +/-20 PPM -40/+125C | 32.768 kHz |
| Micro Crystal | CM7V-T1A-32.768k-12.5pF-10PPM-TA-QA | 32.768 kHz 12.5 pF +/-10 PPM -40/+85C | 32.768 kHz |
| Micro Crystal | CM7V-T1A-32.768kHz-9pF-10PPM-TB-QC | 32.768 kHz 9.0 pF +/-10 PPM -40/+125C | 32.768 kHz |
| Micro Crystal | CM8V-T1A-32.768kHz-7pF-100PPM-TA-QC | 32.768 kHz 7.0 pF +/-100 PPM -40/+85C | 32.768 kHz |
| Micro Crystal | CM8V-T1A-32.768kHz-12.5pF-20PPM-TC-QC | 32.768 kHz 12.5 pF +/-20 PPM -55/+125C | 32.768 kHz |
| Micro Crystal | CM7V-T1A-32.768kHz-9pF-100PPM-TA-QC | 32.768 kHz 9.0 pF +/-100 PPM -40/+85C | 32.768 kHz |
| Micro Crystal | CM7V-T1A-Low-ESR-32.768k-9pF-20-TB-QA | 32.768 kHz 9.0 pF +/-20 PPM LOW ESR | 32.768 kHz |
| Micro Crystal | CM7V-T1A-32.768k-9pF-100PPM-TC-QA | 32.768 kHz 9.0 pF +/-100 PPM AEC-Q200 | 32.768 kHz |
| Micro Crystal | CM8V-T1A-32.768kHz-9pF-100PPM-TA-QC | 32.768 kHz 9.0 pF +/-100 PPM -40/+85C | 32.768 kHz |
| Micro Crystal | CM7V-T1A-32.768k-6pF-20PPM-TB-QA | 32.768 kHz 6.0 pF +/-20 PPM AEC-Q200 | 32.768 kHz |
| Micro Crystal | CM7V-T1A-32.768kHz-7pF-20PPM-TB-QA | 32.768 kHz 7.0 pF +/-20 PPM AEC-Q200 | 32.768 kHz |
| Micro Crystal | CM7V-T1A-32.768k-9pF-20PPM-TA-QA T3 | 32.768 kHz 9.0 pF +/-20 PPM AEC-Q200 | 32.768 kHz |
微晶超小型晶體CM9V-T1A0.332.768kHz9.0pF±20ppmTBQC可穿戴設備專用晶振，Micro Crystal AG公司于1978年在瑞士格倫興成立，是一家生產手表音叉晶體的公司。如今，Micro Crystal AG是微型石英晶體(30kHz至250MHz)、時鐘晶體諧振器，實時時鐘(RTC)模塊、振蕩器和OCXOs的領先制造商，為全球領先的物聯網、可穿戴、汽車、工業和醫療應用制造商提供服務。
